Darshil Enterprises, a trusted overload relay manufacturer in India, understands that in today's high-demand industrial environments, machinery and electrical systems operate under constant pressure. As electrical loads increase, so do the risks of overheating, breakdowns, and fire hazards. One of the most essential components in protecting motors and circuits from damage is the overload relay. Often underestimated, overload relays are a critical part of industrial electrical protection systems, ensuring long-term reliability, operational safety, and system efficiency.

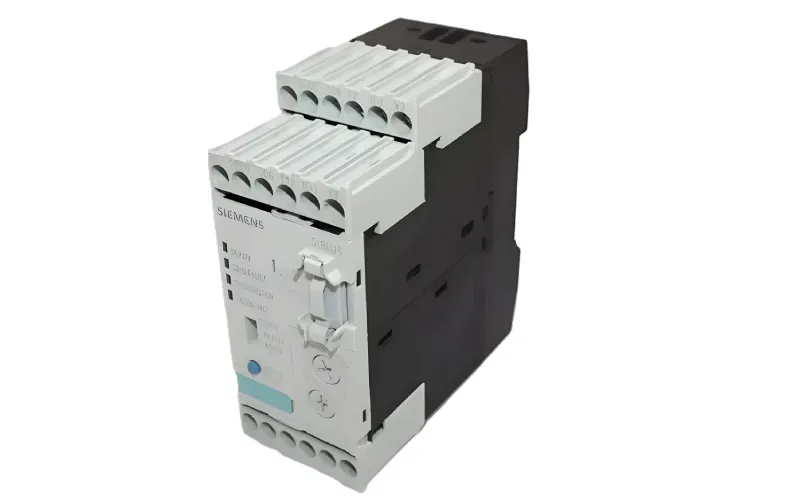

What Are Overload Relays?
Overload relays are electromechanical or electronic devices used to protect motors from overheating due to excessive current draw over extended periods. Unlike circuit breakers, which respond instantly to short circuits, thermal overload relays allow temporary overloads but trip when the current remains above a safe threshold for too long.
They are typically installed in combination with contactors to complete the motor protection relay circuit.
Why Are Overload Relays Essential in Industrial Electrical Protection Systems?
In any industrial electrical protection system, preventing equipment damage and operational downtime is a top priority. Here's why overload relays are indispensable:
- Motor Protection: Motors are the backbone of industrial operations. Motor protection relays prevent motor windings from burning out due to prolonged overcurrent.
- Preventing Overheating: Thermal overload relays disconnect the circuit before harm happens by monitoring the current's temperature over time.
- Enhancing System Longevity: By protecting motors and wires from excess stress, overload relays significantly extend equipment life.
- Improving Operational Safety: A well-thought-out industrial electrical protection system reduces the risk of fire and makes the workplace safer.
How Overload Relays Work
Time-delay tripping is the foundation upon which overload relays operate. They respond to steady overcurrent that produces heat rather than abrupt surges.
Working Steps:
- A heating element within the relay warms up as the current increases
- The bimetallic strip or thermistor expands
- When the expansion reaches a specific threshold, it trips the circuit
This method ensures that thermal overload relays only shut down the motor when truly necessary, avoiding false trips during startups or temporary load spikes.
Types of Overload Relays
Selecting the appropriate overload relay type is essential to guaranteeing the functionality and security of your application. The most common types include:
- Thermal Overload Relays: These use bimetallic strips that bend when heated by overcurrent. They are widely used and cost-effective.
- Electronic Overload Relays: Provide advanced features like precise current sensing, phase failure detection, and adjustable settings.
- Bimetallic Overload Relays: A subgroup of thermal relays that achieve tripping by employing two distinct metals with varying rates of expansion.
Key Applications in Industrial Setups
You'll find overload relays in nearly every industrial environment, including:
- Manufacturing plants
- HVAC systems
- Conveyor belts
- Pumps and compressors
- Elevators and cranes
Regardless of the industry, protecting motors with reliable motor protection relays ensures uninterrupted productivity and safety.
How to Choose the Right Overload Relay
Here are some critical factors to consider:
- Current Rating: Must match the motor's full-load current
- Trip Class: Determines how quickly the relay trips (commonly Class 10, 20, or 30)
- Type of Load: For heavy-duty motors, choose thermal overload relays
- Reset Type: Manual or automatic reset, based on operational preferences
- Phase Protection: Advanced relays provide phase failure and imbalance protection
Reliable overload relay manufacturers in India like Darshil Enterprises offer a wide range of models suited for various industrial applications.
Benefits of Using High-Quality Overload Relays
- Prevent Motor Damage: Your equipment stays protected from irreversible thermal stress
- Reduce Maintenance Costs: Preventative tripping minimizes frequent breakdowns and part replacements
- Increase Energy Efficiency: Protected motors operate more efficiently and use less energy
- Boost Worker Safety: With reliable industrial electrical protection systems, the risk of injury or fire is significantly lowered
Future of Overload Relays in Industry
With Industry 4.0, motor protection relays are evolving into smarter, IoT-compatible systems:
- Remote monitoring capabilities
- Predictive maintenance alerts
- Integration with SCADA and PLC systems
Electronic overload relays with built-in data logging and wireless communication will become the new standard in industrial electrical protection systems.
Why Choose Us – Darshil Enterprises
At Darshil Enterprises, we take pride in delivering top-grade overload relays for a wide range of industries. We value every order, big or small, and treat every client with care, professionalism, and respect. Our product range includes both thermal overload relays and motor protection relays, designed to perform reliably under India's diverse industrial conditions. As one of the most trusted overload relay manufacturers in India, we combine high-quality materials, expert engineering, and world-class service.
Conclusion
In conclusion, overload relays are the unsung heroes of industrial safety and performance. From protecting expensive motors to preventing fires and unplanned downtime, their role in industrial electrical protection systems is indispensable. By selecting the right motor protection relay, you not only safeguard your assets but also enhance your plant's operational efficiency.
Whether you're modernizing your facility or building it from the ground up, invest in reliable overload relays from manufacturers who prioritize quality and support—like Darshil Enterprises.
